USE
Cardboard
Plastic
Mixed waste
Incineration waste
FEATURES
Huge infeed opening
Standard containers up to 38 m³
Extremely robust design
Pre-crushing gate
Intelligent SMART technology
CAPACITY
20 m³
24 m³
27 m³
30 m³
32 m³
35 m³
36 m³
PRE-CRUSHING WASTE COMPACTORS FOR TOUGH AND BULKY WASTE

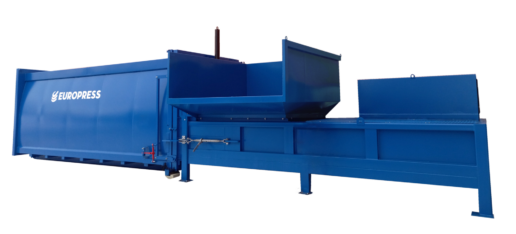

Europress EPC and MiniEPC are pre-crushing waste compactors designed to efficiently reduce the waste volume before it is compacted into a container. Pre-crushing the waste contributes to drastically higher payloads. The robust waste compactors support 24/7 heavy-duty use.
Europress EPC and MiniEPC feature a pre-crushing function in which the ram crushes material against a vertical steel gate. The gate is then raised, allowing the ram to fully extend and compact the crushed material into the container. The compactors are ideal for crushing though and bulky items e.g. pallets, drums and furniture into fraction of their original size.
Europress EPC and MiniEPC are stationary waste compactors meaning that their containers are detached for transportation while the press units stay firmly attached on the ground. Their extremely large infeed openings guarantee easy loading and support utilization of various loading equipment e.g. tipping skips and loading shovels.
Intelligent SMART technology on the compactors contributes to more cost-efficient and safe operation. Device settings can be individually adjusted to best meet various waste management requirements. The compactors monitor their usage and adapt to anomalies in order to protect both the operator and the components.
EPC & MiniEPC compactors feature Europress SMART connectivity readiness as standard, enabling integration to the Europress SMART Fleet Management system. The system provides insights on asset data and tools for streamlined fleet management.
Additional information
EPC | MiniEPC
Infeed aperture L x H (mm)
1 850 x 1 850 | 1 500 x 1 150
Compaction force (t)
<50
Press cycle time (s)
74 / 53* | 58 / 37*
Capacity (cardboard) (m³ /h)
102 / 142 * | 62 / 97*
Motor (kW)
7,5 / 11* (MiniEPC / EPC)
Power supply
400 V, 50 Hz, 3×C32 A (MiniEPC / EPC)
400 V, 50 Hz, 3×C63 A* (MiniEPC / EPC)
Blue color RAL 5017
Standard filling hopper
Lift hook rear (container)
Front rollers on container (roll-off)
Container not present switch (safety limit)
Pre-crushing function (hydraulic vertical gate)

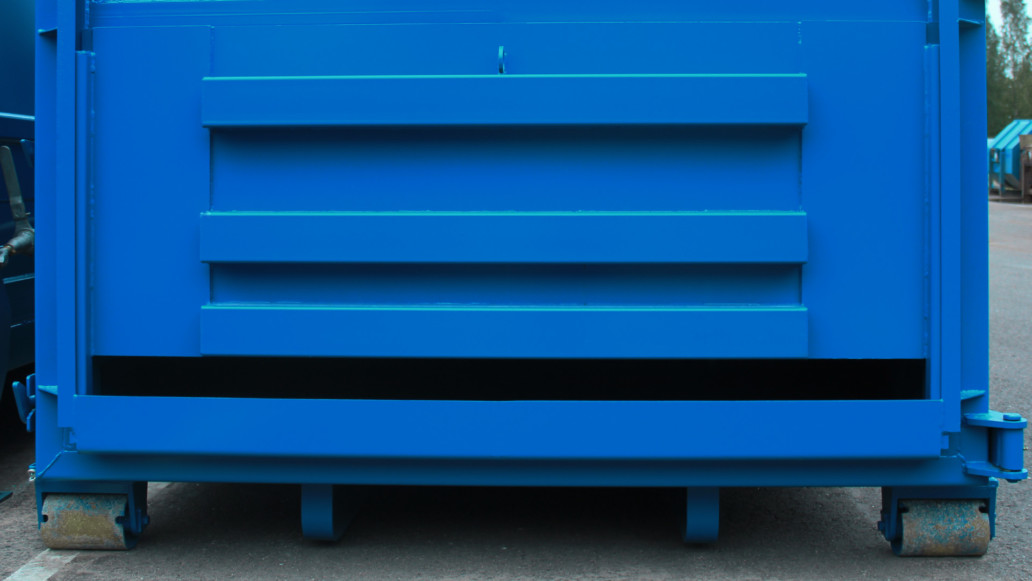

Container closing trap (vertical gate)
Intelligent SMART technology
Europress SMART connectivity readiness
Custom RAL color
Guide rails
Additional controls e.g. emergency stops
Rear rollers on container (roll-off)
Custom filling hopper
2-phase discharge door opening mechanism
Long handle discharge door opening mechanism
Hydraulic discharge door opening system
Hydraulic container fastening system
Bin lift (integrated / stationary)
Lid opening system (hydraulic / electronic)
Code start system
Auto start system
15 kW power unit
Floating roof container 20-36 m²
Reserve container
EPC / MiniEPC press unit
Length 5,430 / 3,450 mm
Width 2,430 / 2,130 mm
Height 3,280 / 3,330 mm
Weight 8,200 / 5,200 kg
Container 20 m³
Length 4,510 mm
Width 2,500 mm
Height 2,730 mm
Weight 2,300 kg
Container 24 m³
Length 5,330 mm
Width 2,500 mm
Height 2,730 mm
Weight 2,460 kg
Container 27 m³
Length 5,940 mm
Width 2,500 mm
Height 2,730 mm
Weight 2,680 kg
Container 30 m³
Length 6,550 mm
Width 2,500 mm
Height 2,730 mm
Weight 2,900 kg
Container 32 m³
Length 6,960 mm
Width 2,500 mm
Height 2,730 mm
Weight 3,000 kg
Container 35 m³
Length 6,675 mm
Width 2,500 mm
Height 3,070 mm
Weight 3,230 kg
