USE
Cardboard
Plastic
Mixed waste
FEATURES
Several standard container sizes
Reliable and easy to use
Solar panels
Intelligent SMART technology
CAPACITY
14 m³
17 m³
20 m³
SOLAR-POWERED WASTE COMPACTOR

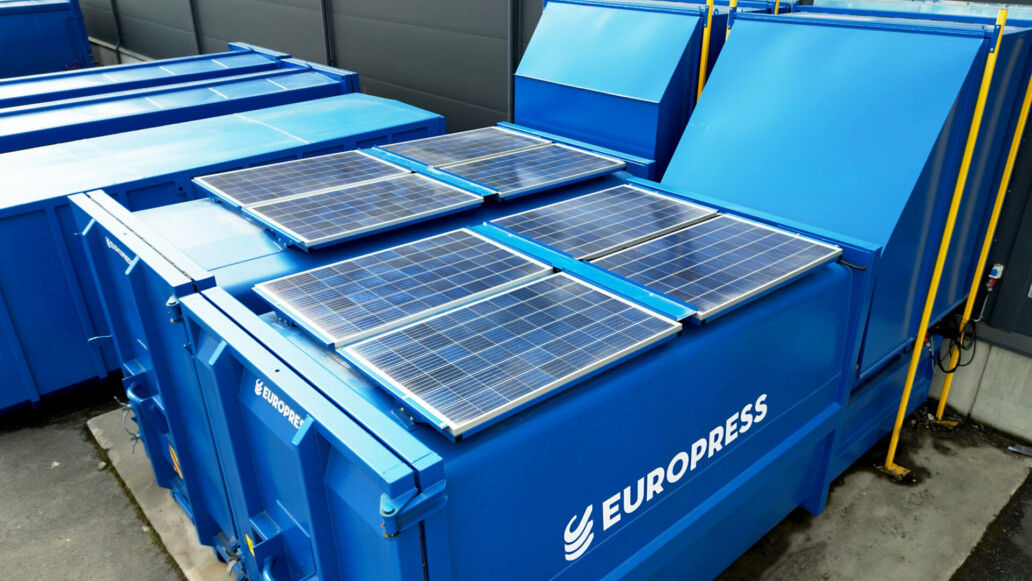

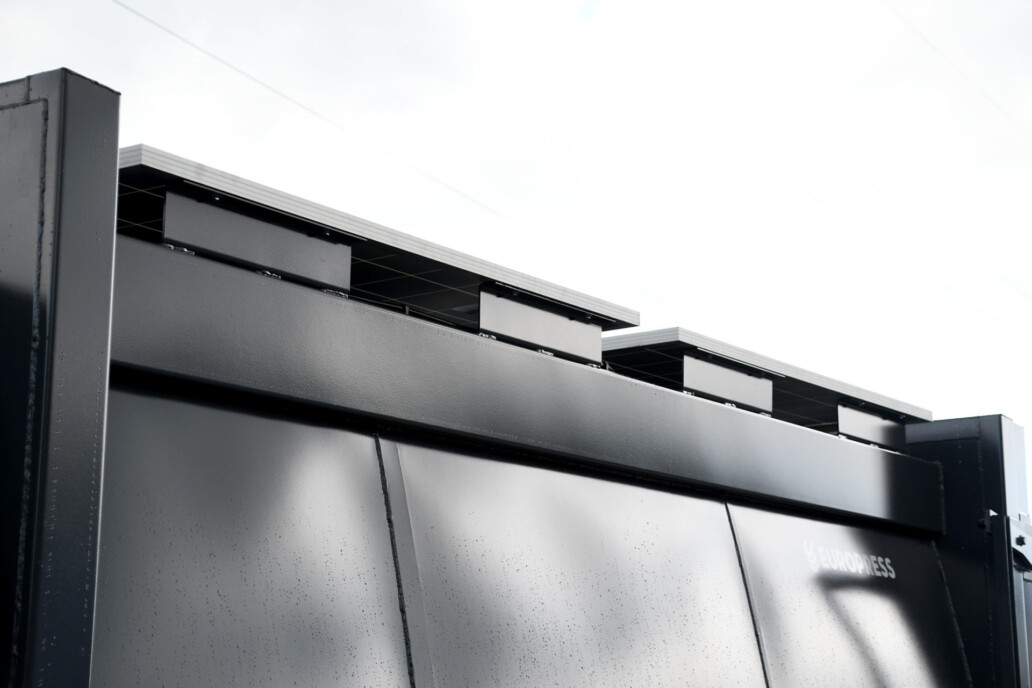

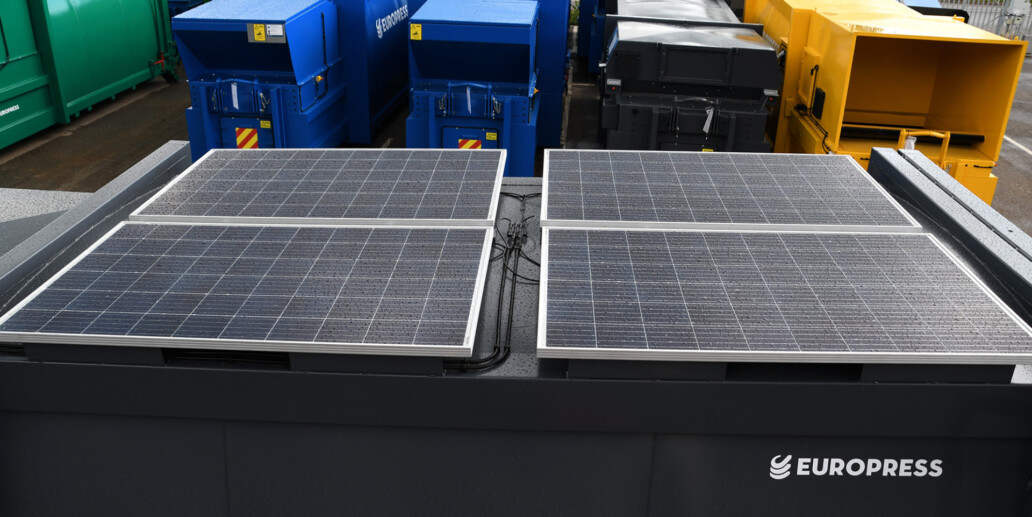

The Europress CombiMax SMARTSolar waste compactor is powered by solar panels and 1-phase mains power. The robust and efficient CombiMax SMARTSolar gets its power from four 300W solar panels located on its roof.
The device does not require mains power to operate, and it can be used in the summer even where electricity is not available at all. It is as effective as a conventional mains powered device. On a sunny day, it offers more than 2.5 hours of running time without mains charging. When it is not possible to get enough power from the sun, the batteries can be charged with ordinary mains power.
The CombiMax SMARTSolar is intended for 20 m3 containers, but the device can be shortened so that only half the solar panels are installed on the device. In this case, the size category is CombiMax/14-17. Feed hoppers are always tailored according to the intended use.
• Mains charging allows the device to run approx. 1/3 of the time. A device in mains mode can run for approx. 20 minutes an hour if solar energy is not available.
• On a sunny day during the 8 peak hours, the device offers more than 2.5 hours of running time from the sun without mains charging.
• Combined, on a sunny day, the device can run for a total of 8 hours between 06:00 and 22:00 (i.e. 50% of the time), which is perfectly sufficient for use when most required.
The running time on a full battery without sun or mains power is 2 hours.
Intelligent SMART technology on the compactors contributes to more cost-efficient and safe operation. Device settings can be individually adjusted to best meet various waste management requirements. The compactors monitor their usage and adapt to anomalies in order to protect both the operator and the components.
CombiMax & Combi compactors feature Europress SMART connectivity readiness as standard, enabling integration to the Europress SMART Fleet Management system. The system provides insights on asset data and tools for streamlined fleet management.
Additional information
Infeed aperture
1,850 x 1,300 mm
Compaction force
35 t
Press cycle time
115 s
Capacity (cardboard)
45 m³ /h
Motor (kW)
2,75
Power supply
400 V, 50 Hz, C16 A
Energy consumption (kW/ operating hour)
0,93
Energy storage in a lithium battery
Operating time *
2 h (60+ press strokes)
* On full battery without solar energy or mains power
Blue color RAL 5017
Standard or tailored filling hopper
Lift hooks front / rear
Intelligent SMART technology
Europress SMART connectivity readiness
Four 300w solar panels
Lithium battery for energy storage
S8 tipping device
Auto start
GPS
Special RAL colours, customer’s own logo adhesives
Lid opening mechanism (hydraulic/electronic)
Code start
Additional buttons, e.g. Extra emergency stop buttons
Locking cases
Liquid proofing
Guide rails
Wheels, front / rear
Electronic accessories; smart connectivity with full SMART Services
2-stage opening mechanism of emptying door
Long handle opening mechanism of emptying door
CombiMax 14 m³
Length 5,900 / 5,420 mm
Width 2,500 / 2,500 mm
Height 2,730 / 2,730 mm
Weight 4,050 / 3,390 kg
CombiMax 17 m³
Length 6,500 / 6,020 mm
Width 2,500 / 2,500 mm
Height 2,730 / 2,730 mm
Weight 4,220 / 3,560 kg
CombiMax 20 m³
Length 6,990 / 6,510 mm
Width 2,500 / 2,500 mm
Height 2,730 / 2,730 mm
Weight 4,360 / 3,690 kg
