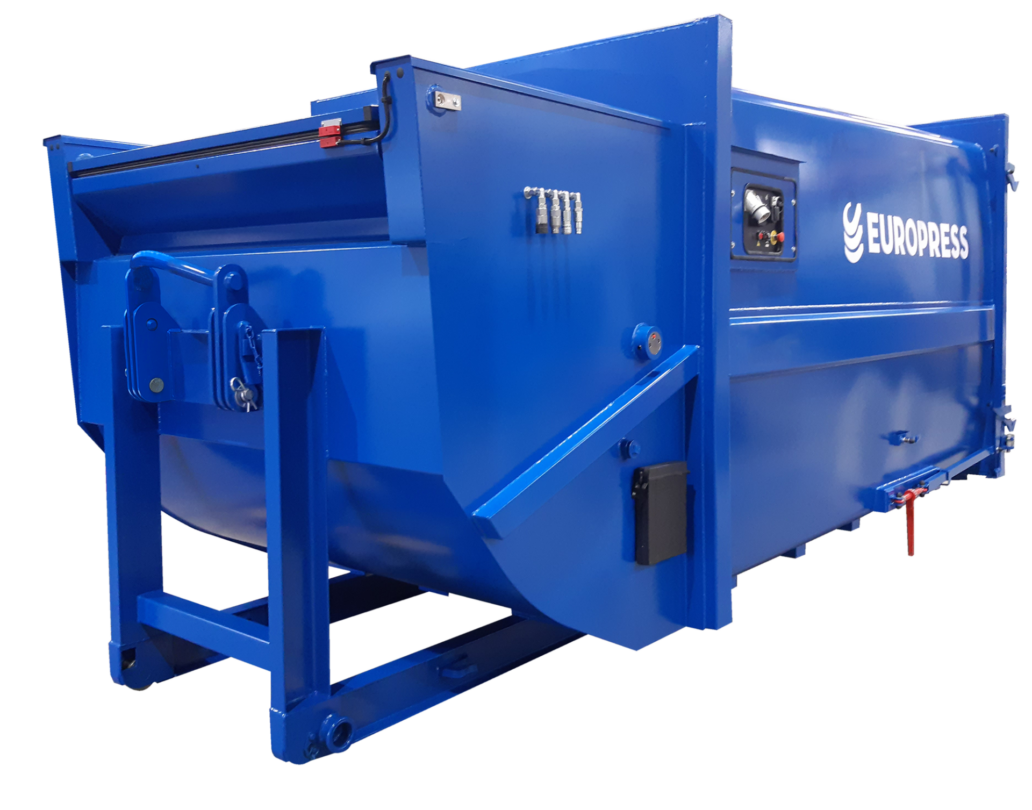

DURABLE PENDULUM COMPACTORS FOR WET WASTE
Europress Combio portable compactor are designed to handle high moisture content materials e.g. damp mixed waste and organic waste. The waste compactors are fully liquid proof to ensure hygiene at the placement site. Loading is easy as they feature the lowest infeed height on the market for pendulum compactors.
The compactors feature self-cleaning pendulum ram technology. The pendulum ram functions as a wiper: any material left behind it is scraped off in the return stroke. Due to the design, there is no need for regular cleaning behind the ram.
The waste compactors are extremely durable as all hydraulic and electrical parts are completely isolated from the press chamber. Their factory-tested water proof design effectively eliminates effluent seepage and minimizes odors.
Europress Combio waste compactors can be supplied with a range of accessories including bin lifts, odor control and bottom heating systems. The compactors are available in several standard container capacities: 10 m³, 11 m³, 14 m³, 17m³ and 20 m³.
Intelligent SMART technology on the compactors contributes to more cost-efficient and safe operation. Device settings can be individually adjusted to best meet various waste management requirements. The compactors monitor their usage and adapt to anomalies in order to protect both the operator and the components.
Combio compactors feature Europress SMART connectivity readiness as standard, enabling integration to the Europress SMART Fleet Management system. The system provides insights on asset data and tools for streamlined fleet management.
Europress Combio are used for biowaste in a shopping center Karisma
Combio compactors are used for biowaste, DuoMax compactors for energy waste and Europress H&G screw compactors for cardboard waste in Karisma shopping center.
Media
Additional information
Infeed aperture W x H
1.400 x 1.250 mm
Infeed height (ground level)
1.300 mm
Compaction force
35 t
Press cycle time
28 s
Capacity (organic waste)
75 m³ /h
Motor
5.5 kW
Power supply
400 V, 50 Hz, 3×C16 A
Blue color RAL 5017
Lift hooks front/rear
Standard filling hopper
Long handle discharge door opening mechanism
Waterproof set up
Intelligent SMART technology
Europress SMART connectivity readiness
Custom RAL color
Guide rails
Additional controls e.g. emergency stops
Rollers front / rear (roll-off)
Custom filling hopper
Drainage system
2-phase discharge door opening mechanism
Top hinged discharge door
Ozone generator / cooler device (odor control)
Bin lift (integrated / stationary)
Lid opening system (hydraulic / electronic)
Code start system
Auto start system
7.5 kW power unit
Combio 10 m³
Length 4,235 mm
Width 2,500 mm
Height 2,725 mm
Weight 3,500 kg
Combio 14 m³
Length 4,955 mm
Width 2,500 mm
Height 2,725 mm
Weight 3,710 kg
Combio 17 m³
Length 5,555 mm
Width 2,500 mm
Height 2,725 mm
Weight 3,880 kg
Combio 20 m³
Length 6,045 mm
Width 2,500 mm
Height 2,725 mm
Weight 4,020 kg
