USES
Cardboard
Plastic
Textiles
FEATURES
High compression force
Large feed opening
Small footprint
Intelligent SMART technology
BALE SIZE

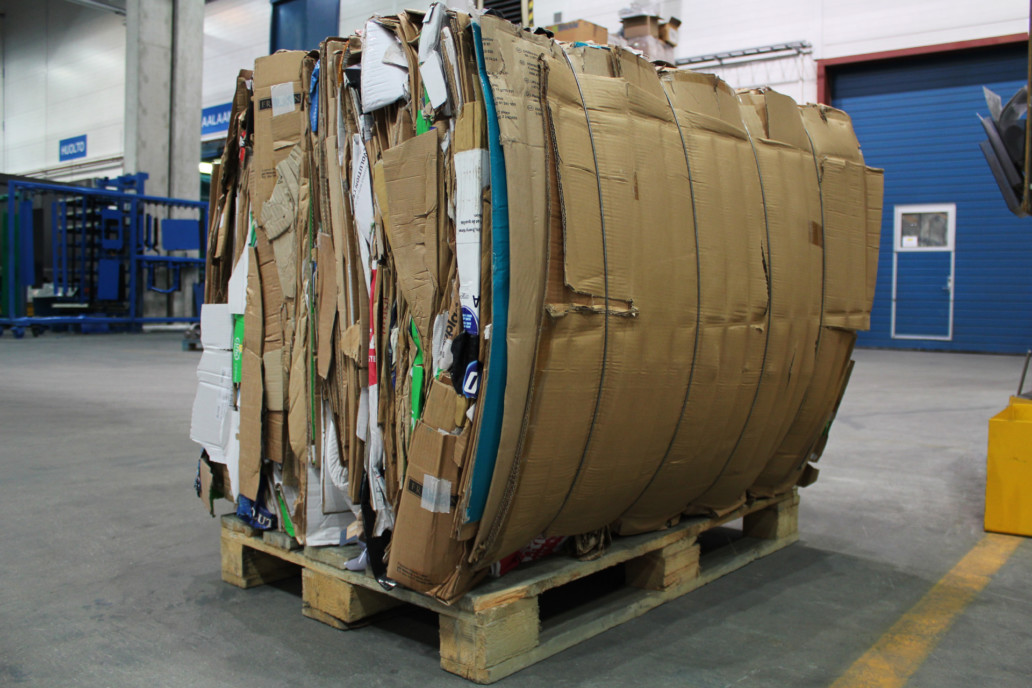

350-400 kg
HEAVY-DUTY VERTICAL WASTE BALERS

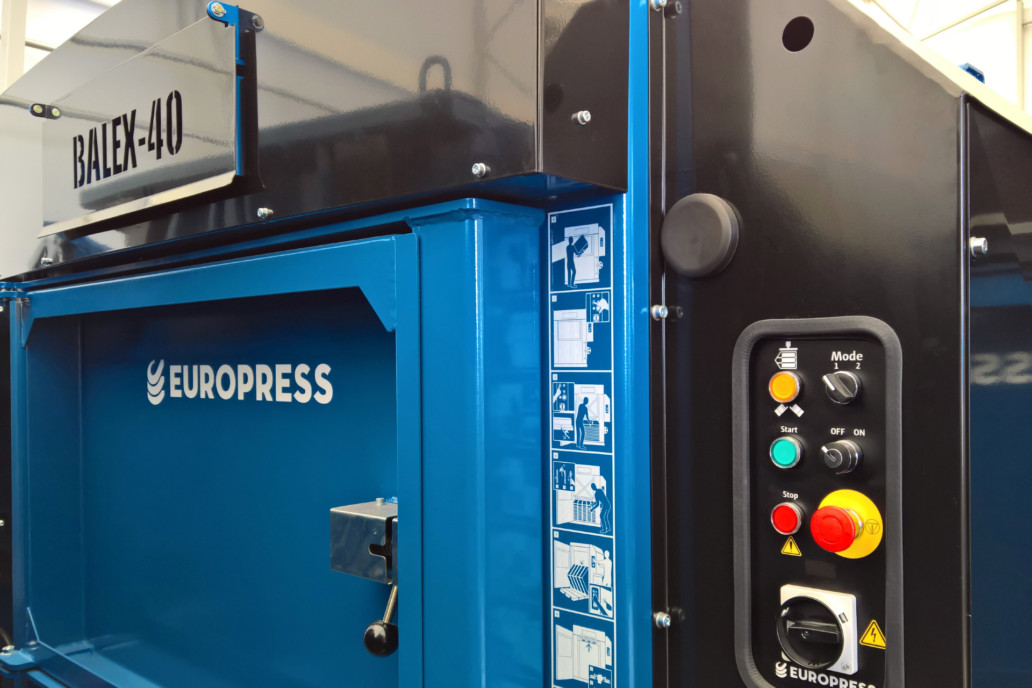

The Europress Balex-40 is a compact and versatile vertical waste baler with 40 tons of compression force producing very dense 350-400 kg bales. The Balex-40 features a large infeed opening and a press cycle time of 61 seconds, ensuring effortless compaction of various materials.
The cross-cylinder design of the Balex-40 creates a tiny footprint. With a low overall height of just 1995 mm, these waste balers are easy to place even in small spaces.
The dual mode function features two separate programs to optimize the baler for different types of refuse. The Balex-40 can handle a wide range of materials, including cardboard, plastics and textiles. The operating noise level remains low despite the stable and fast compression.

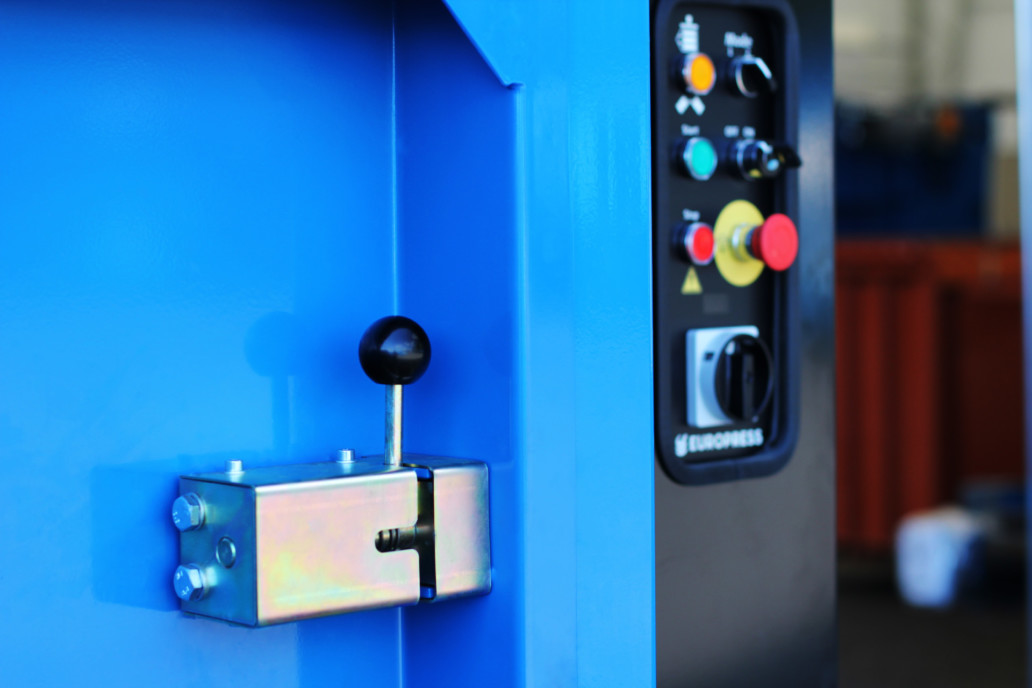

The large infeed opening enables easy loading. The strap box is conveniently located at the front of the baler for quick strap changes and bale tie offs. A pallet guide is a standard feature for easy pallet placement.
Intelligent SMART technology on the balers contributes to more cost-efficient and safe operation. Device settings can be individually adjusted to best meet various waste management requirements. The balers monitor their usage and adapt to anomalies in order to protect both the operator and the components.
Balex balers feature Europress SMART connectivity readiness as standard, enabling integration to the Europress SMART Fleet Management system. The system provides insights on asset data and tools for streamlined fleet management.
Balex-40 waste baler in Redi shopping center
Bio and energy fractions are collected in Europress SMART waste compactors, while efficient screw compactors handle all the cardboard and a Balex-40 SMART baler bales the clear plastic.
Additional information
Compaction force
40 t
Dimensions H x W x D
1,995 x 1,810 x 1,250 mm
Weight
2,060 kg
Infeed opening H x W x D
520 x 1,120 x 950 mm
Infeed height
940 mm
Bale dimensions H x W x D
950 x 1,200 x 840 mm
Bale weight (cardboard)
350–400 kg
Power supply
400 V, 50 Hz, 3x C16 A
Press cycle time
61 s
Noise level
59 dBa
Motor
4.0 kW
Blue color RAL 5017
Material retention claws
Pallet guide
Integrated strap cutting blade
Automatic bale ejection system
Two-handed bale ejection system
Mode switch (two modes of operation)
Key-operated lock switch
Loading door safety limit switch
Discharge door safety limit switch
Intelligent SMART technology
Europress SMART connectivity readiness
Plastic collection accessories
Additional folding material retaining claws
Code start
Anti-shock pads
Bale ejector anti-shock pads
