USE

Cardboard

Plastic

Mixed waste

Incineration waste

Non-recoverable waste

Solid municipal waste



FEATURES

Standard containers 20m³ - 32m³

Huge infeed opening

Robust compactor for 24/7 use

Intelligent SMART technology

CAPACITY

20 m³

24 m³

27 m³

30 m³

32 m³

CUSTOMIZABLE COMPACTOR

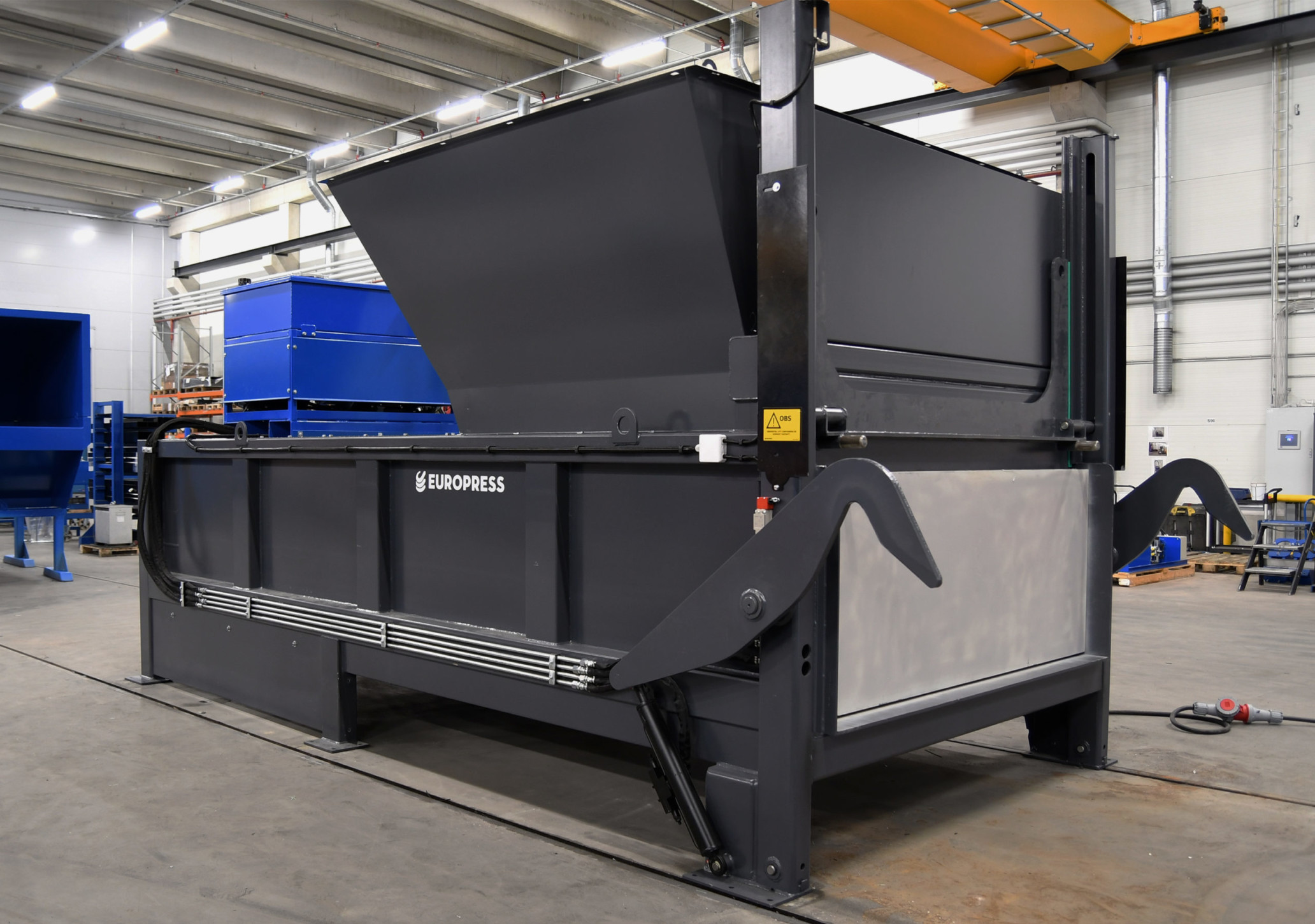

VersaMax is a easily customizable waste compactor designed to meet various needs of the waste and recycling industry
customers. The speed, capacity and press power can be tailored according to the customers’ needs and even upgraded
afterwards as a retrofit with very affordable costs in case the usage or circumstances change over the lifetime of the product.
VersaMax can be fitted with a 2-part gate solution (both the compactor and container) that reduces littering and allows
the usage of the feeding hopper even when the container is being emptied. The container fastening can also be made with
hydraulics allowing a very efficient logistics in heavy use locations.
Even in the manual change procedure the container has a semiautomatic uncoupling solution and reset sequence to help the
emptying process. VersaMax can also be tailored to difficult waste fractions, such as dry process reject waste and very large cardboard. For these cases the slightly longer VersaMax L with an exceptionally deep ram penetration will effectively minimize the littering during the container uncoupling process. VersaMax waste compactor is excellent choice for sorting plants, printing houses, paper factories and local reloading stations for municipal solid waste.

smart waste management system

Intelligent SMART technology on the compactors contributes to more cost-efficient and safe operation. Device settings can be individually adjusted to best meet various waste management requirements. The compactors monitor their usage and adapt to anomalies in order to protect both the operator and the components.

EPC & MiniEPC compactors feature Europress SMART connectivity readiness as standard, enabling integration to the Europress SMART Fleet Management system. The system provides insights on asset data and tools for streamlined fleet management.

ADDITIONAL INFORMATION


Infeed aperture L x H

1,830 mm x 1,426 mm

Compaction force

up to 50 t

Press cycle time

32 – 66 s

Capacity (cardboard)

up to 219 (m³/h)

Motor

7,5 / 11 kW

Power supply

400 V, 50 Hz, 3xC32 A

400 V, 50 Hz, 3xC50 A*

(C63 A Plug)

BLUE COLOR RAL 5017

STANDARD FILLING HOPPER

LIFT HOOK REAR (CONTAINER)

FRONT ROLLERS ON CONTAINER (ROLL-OFF)

CONTAINER NOT PRESENT SWITCH (SAFETY LIMIT)

INTELLIGENT SMART TECHNOLOGY

EUROPRESS SMART CONNECTIVITY READINESS

CUSTOM RAL COLOR

GUIDE RAILS

ADDITIONAL CONTROLS E.G. EMERGENCY STOPS

CUSTOM FILLING HOPPER

2-PHASE DISCHARGE DOOR OPENING MECHANISM

LONG HANDLE DISCHARGE DOOR OPENING MECHANISM

HYDRAULIC DISCHARGE DOOR OPENING MECHANISM

HYDRAULIC CONTAINER FASTENING SYSTEM

BIN LIFT (INTEGRATED / STATIONARY)

LID OPENING SYSTEM (HYDRAULIC / ELECTRIC)

CODE START SYSTEM / AUTO START SYSTEM

11 KW POWER UNIT

FLOATING ROOF CONTAINER 20–32 M³

CONTAINER CLOSING HATCH (HYDRAULIC VERTICAL HATCH)

RESERVE CONTAINER

VersaMax unit
Length 4,643 mm
Width 2,500 mm
Height 2,721 mm

VersaMax (L) unit
Length 4,983 mm
Width 2,500 mm
Height 2,721 mm

Container 20 m³
Length 4,510 mm
Width 2,500 mm
Height 2,730 mm
Weight 2,300 kg

Container 24 m³
Length 5,330 mm
Width 2,500 mm
Height 2,730 mm
Weight 2,460 kg

Container 27 m³
Length 5,940 mm
Width 2,500 mm
Height 2,730 mm
Weight 2,680 kg

Container 30 m³
Length 6,550 mm
Width 2,500 mm
Height 2,730 mm
Weight 2,900 kg

Container 32 m³
Length 6,960 mm
Width 2,500 mm
Height 2,730 mm
Weight 3,000 kg
