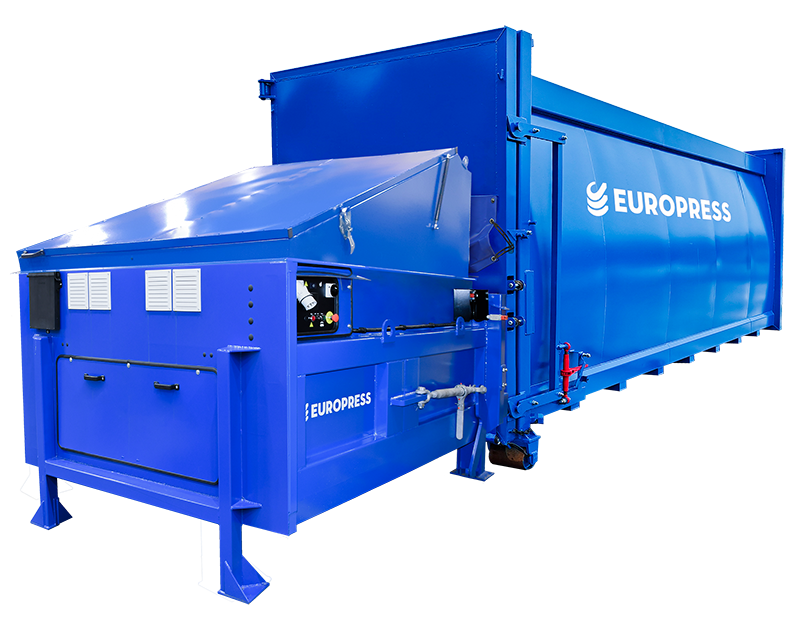

VERSATILE WASTE COMPACTOR WITH DETACHED CONTAINER
The Europress DuoMax XL is a robust, stationary waste compactor designed for demanding use. It is the ideal solution for handling large volumes of waste. The large feed opening makes loading easy.

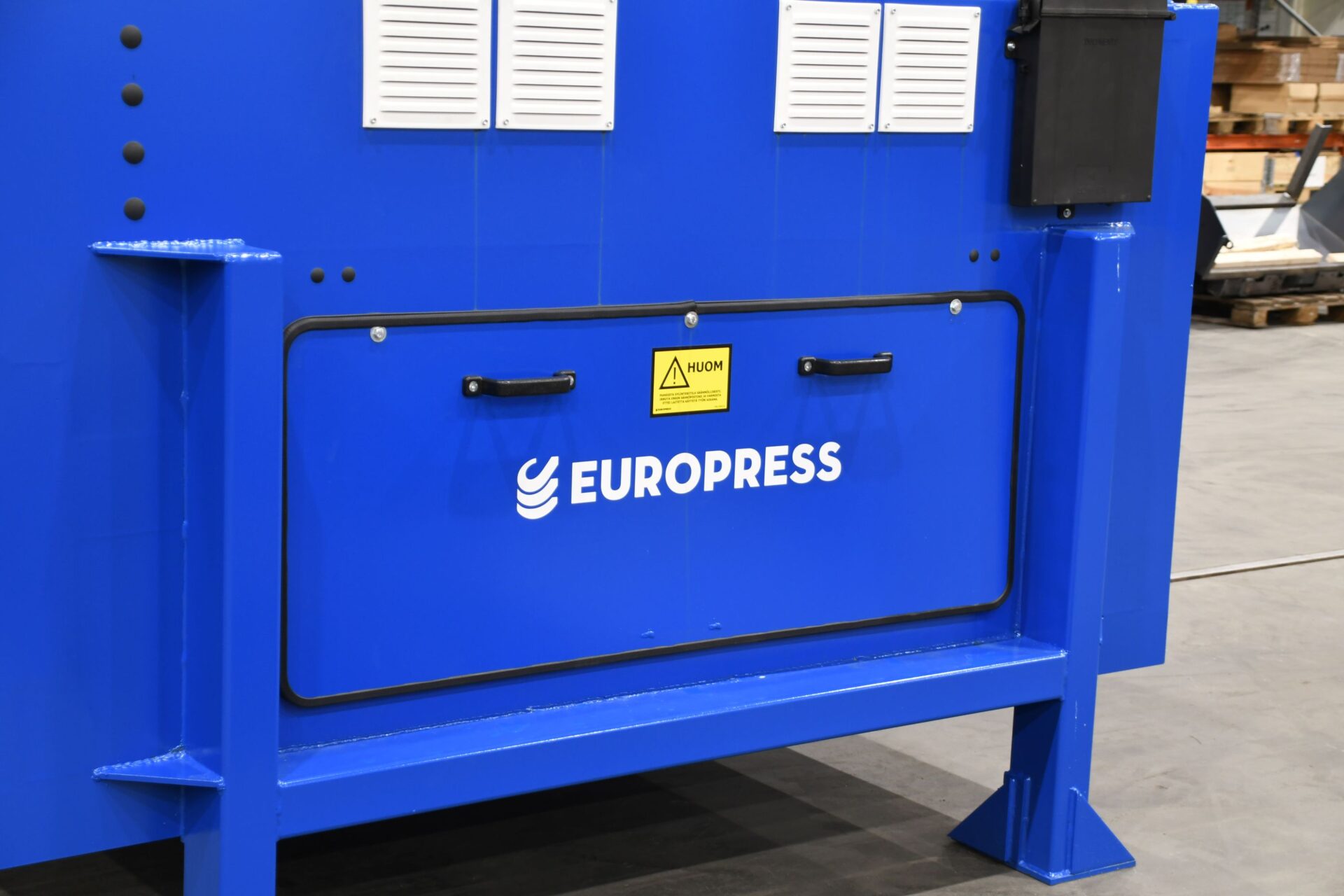

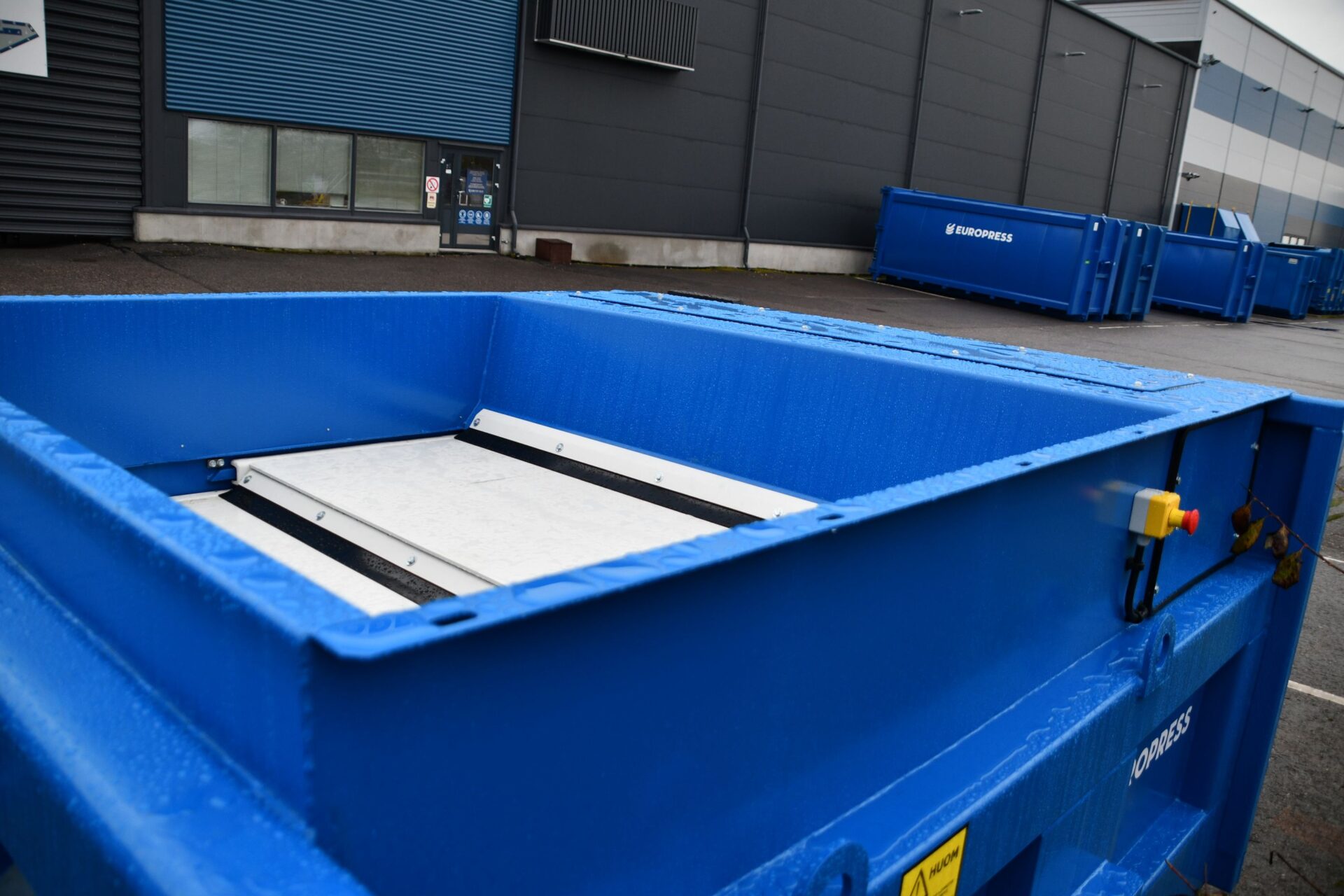

With an efficient compression ratio waste compactors are highly efficient alternatives to waste skips. The large container size allows for higher filling weights. This saves transportation costs, reduces CO2 emissions, and decreases the need for heavy traffic in the waste generation area. DuoMax XL uses less electricity than traditional waste compactors. Large filling opening makes usage quick and effortless. The spacious service door for the cylinder compartment provides effortless access to maintenance points. The container is detached for transport while the compactor unit remains in place, making wall-through feeding easier and more airtight
Intelligent SMART technology on the compactors contributes to more cost-efficient and safe operation. Device settings can be individually adjusted to best meet various waste management requirements. The compactors monitor their usage and adapt to anomalies in order to protect both the operator and the components.
DuoMax XL XL compactors feature Europress SMART connectivity readiness as standard.
Media
Additional information
DuoMax XL
Infeed aperture L x H
1 930 x 1 800 mm
Infeed height front/side
1 590 / 1 340
Compaction force (t)
35 / 40
Cycle time (s)
66 / 35
Capacity (m³ /h)
78 / 147
Noise level (dBa)
<70
Motor (kW*)
5,5 / 7,5
Power supply
400 V, 50 Hz, 3×C16 A
400 V, 50 Hz, 3×C32 A
Blue color RAL 5017
Standard filling hopper
Lift hook front (container)
Rear rollers on container (roll-off)
Container not present switch (safety limit)
Waste return block (stop wires & tarpaulin)
Intelligent SMART technology
Custom RAL color
Guide rails
Additional controls e.g. emergency stops
Bin lift (integrated / stationary)
Lid opening mechanism (hydraulic/electric)
Code start system
Auto start system
More powerful 7,5 kW motor
Detachable lowered infeed
Top-hinged container
Reserve container

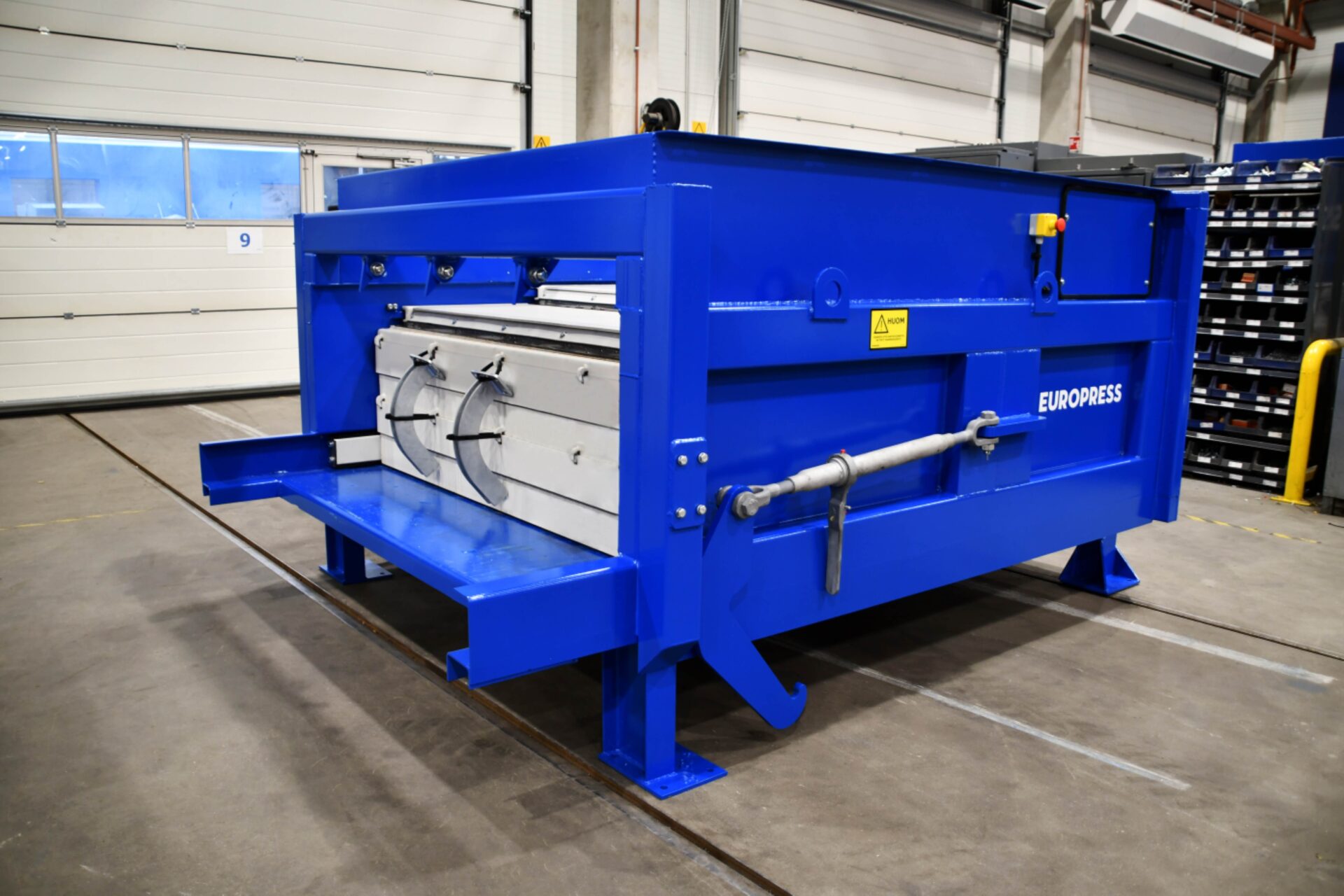

DuoMax XL compactor unit
(without the container)
Length 2 900 mm
Width 2 300 mm
Height 1 560 mm
