USE
Cardboard
Plastic
Mixed waste
Incineration waste
FEATURES
Several standard container sizes
Large infeed opening
Reliable and easy to use
Intelligent SMART technology
CAPACITY
10 m³
14 m³
17 m³
20 m³

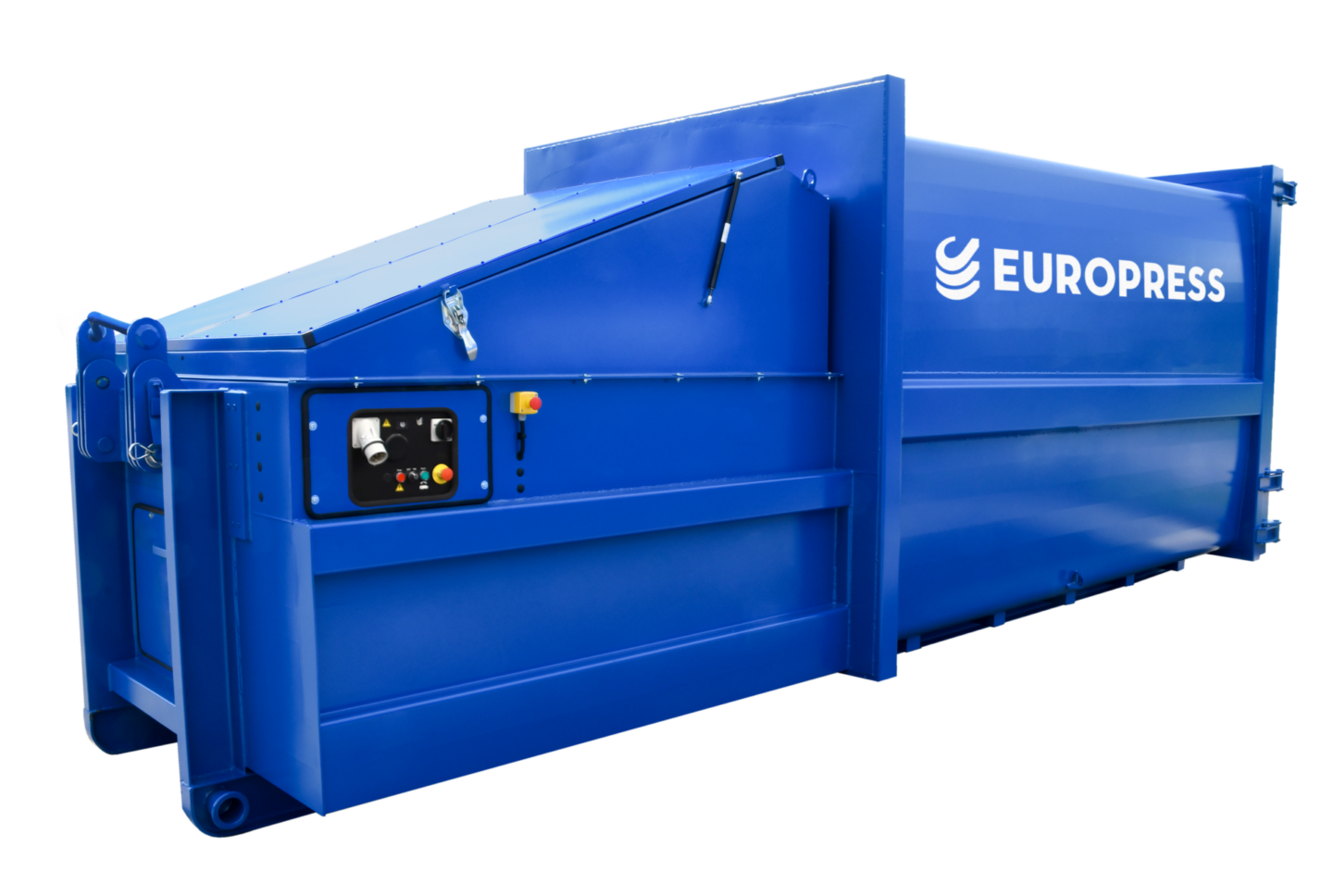

VERSATILE WASTE COMPACTORS FOR EFFICIENT WASTE MANAGEMENT
Europress Combi and CombiMax are versatile waste compactors for active use. They are easy to operate and designed to meet various waste management requirements. Waste compactors are highly efficient alternatives to waste skips with up to 20:1 compression ratio.
Europress Combi and CombiMax waste compactors are portable waste compactors, in which compacting units are attached to the containers. The multi-functional compactors are available in several standard container capacities: 10 m³, 14 m³, 17m³ and 20 m³.
Europress Combi and CombiMax can be supplied with a range of accessories e.g. bin lifts and rollers. Special Low Feed variant is available with its infeed height lowered by 180 mm for easy loading from the ground level.
Intelligent SMART technology on the compactors contributes to more cost-efficient and safe operation. Device settings can be individually adjusted to best meet various waste management requirements. The compactors monitor their usage and adapt to anomalies in order to protect both the operator and the components.
CombiMax & Combi compactors feature Europress SMART connectivity readiness as standard, enabling integration to the Europress SMART Fleet Management system. The system provides insights on asset data and tools for streamlined fleet management.
CombiMax waste compactor in Karisma shopping centre
SMART technology helps to handle cardboard and other waste at the Karisma shopping centre in Lahti, Finland. Read more about the customer case and how the CombiMax compactor is used at the site.
Additional information
CombiMax | Combi
Infeed aperture (mm)
1,850 x 1,300 | 1 500 x 900
Infeed height (ground level) (mm)
1,480 | 1,480
Compaction force (t)
35 / 40* | 25
Press cycle time (s)
66 / 35* | 42
Capacity, cardboard (m³ /h)
78 / 147* | 69
Motor (kW)
5.5 / 7.5* | 5.5
Power supply
400 V, 50 Hz, 3×C16 A (CombiMax / Combi)
400 V, 50 Hz, 3×C32 A* (CombiMax)
Blue color RAL 5017
Standard filling hopper
Lift hooks front / rear
Intelligent SMART technology
Europress SMART connectivity readiness
Custom RAL color
Guide rails
Additional controls e.g. emergency stops
Rollers front / rear (roll-off)
Custom filling hopper
Drainage system
2-phase discharge door opening mechanism
Long handle discharge door opening mechanism
Top hinged discharge door
Ozone generator / cooler device (odor control)
Bin lift (integrated / stationary)
Lid opening system (hydraulic / electronic)
Code start system
Auto start system
7.5 kW power unit
Water proof set up
Low feed set up
CombiMax / Combi 10 m³
Length 5,180 / 4,700 mm
Width 2,500 / 2,500 mm
Height 2,730 / 2,730 mm
Weight 3,840 / 3,190 kg
CombiMax / Combi 14 m³
Length 5,900 / 5,420 mm
Width 2,500 / 2,500 mm
Height 2,730 / 2,730 mm
Weight 4,050 / 3,390 kg
CombiMax / Combi 17 m³
Length 6,500 / 6,020 mm
Width 2,500 / 2,500 mm
Height 2,730 / 2,730 mm
Weight 4,220 / 3,560 kg
CombiMax / Combi 20 m³
Length 6,990 / 6,510 mm
Width 2,500 / 2,500 mm
Height 2,730 / 2,730 mm
Weight 4,360 / 3,690 kg
