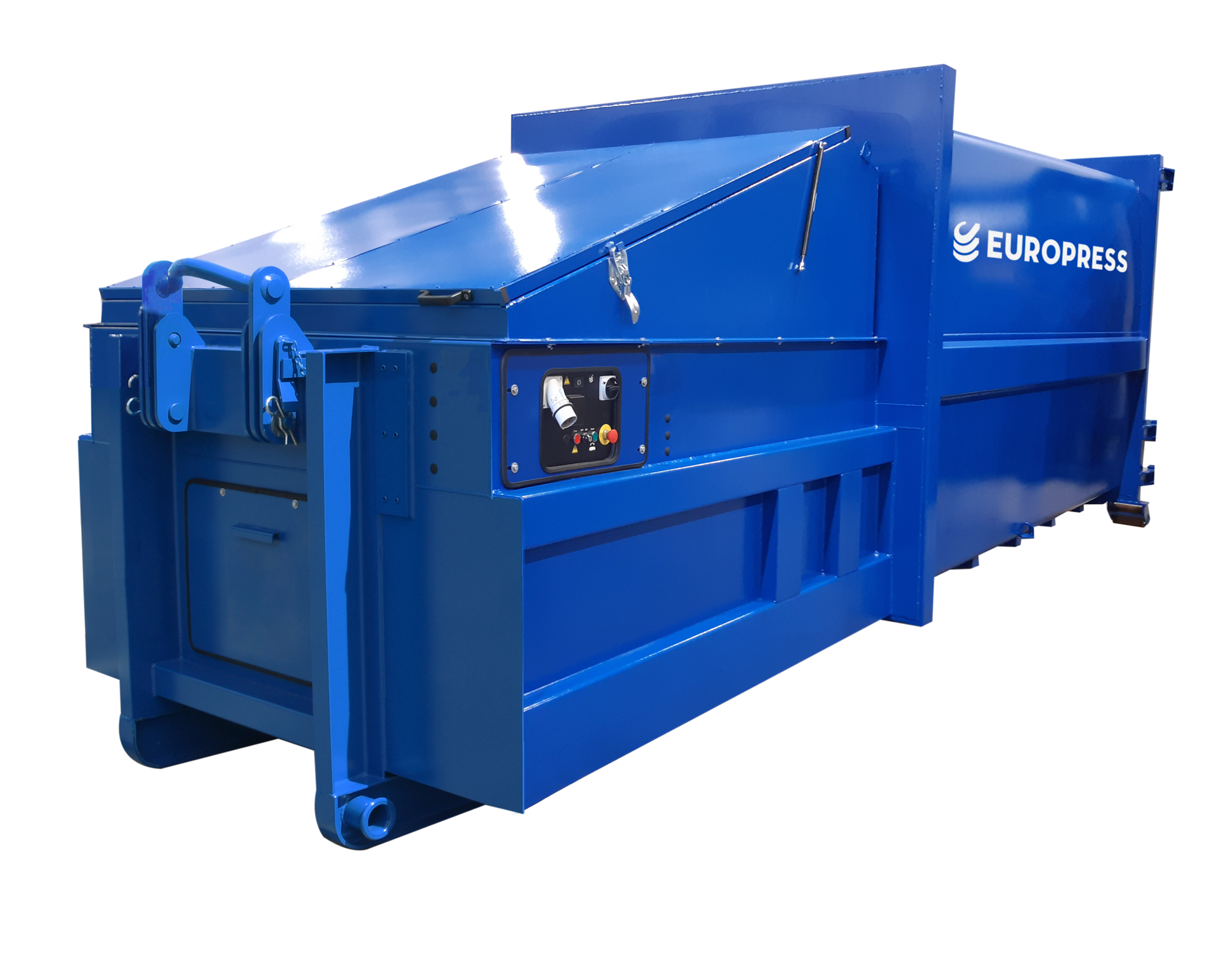

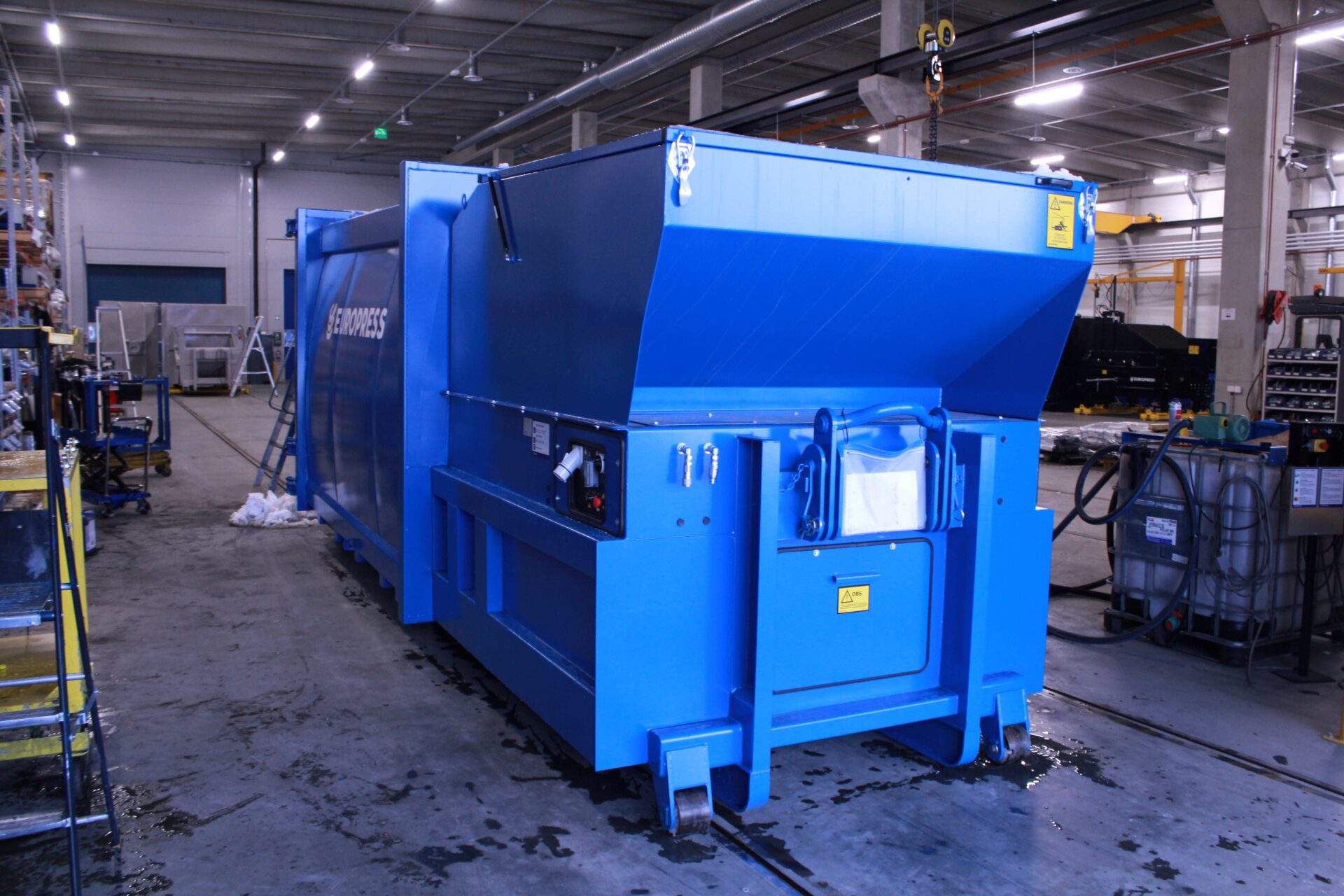

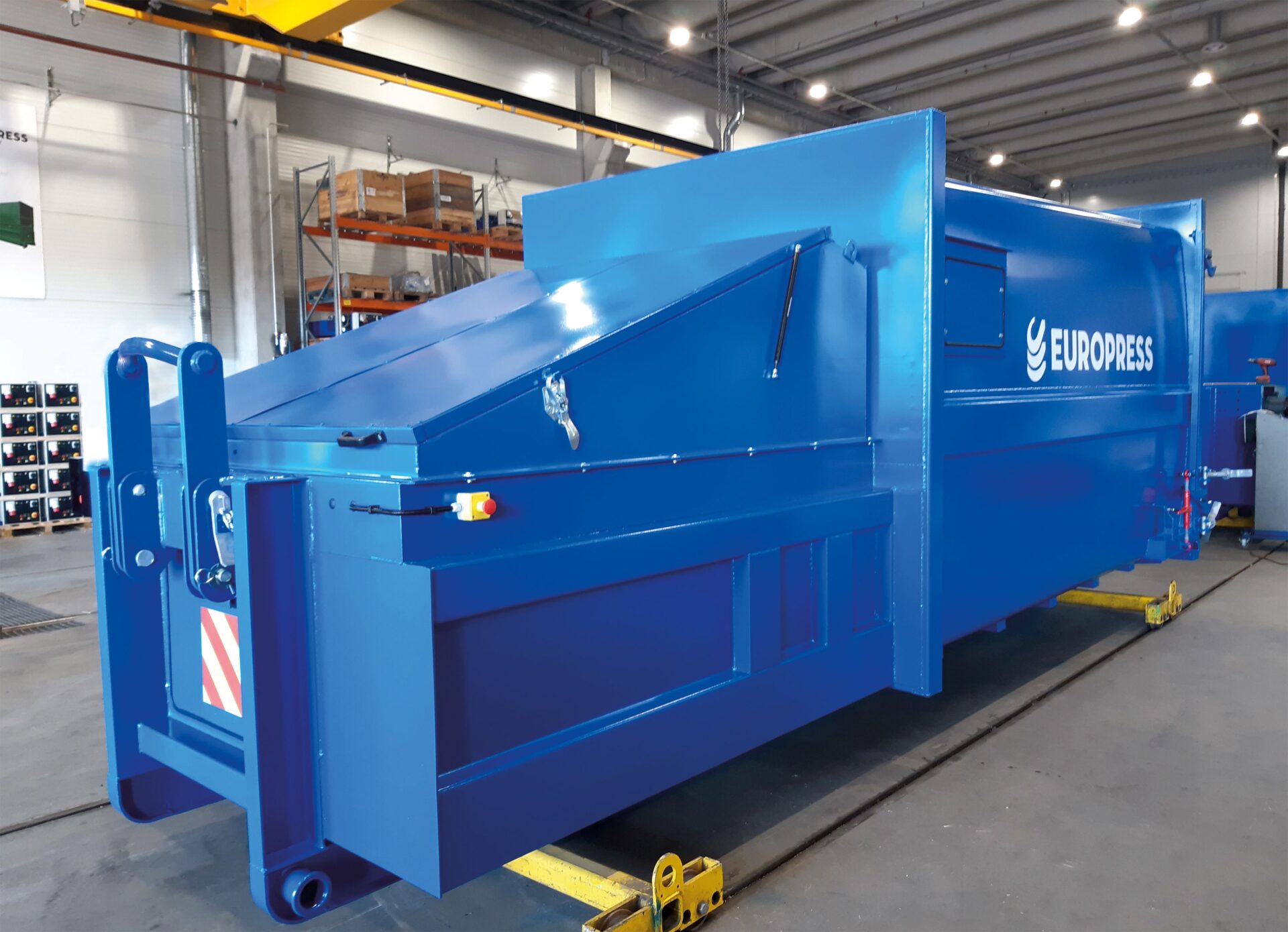

VERSATILE MOBILE WASTE COMPACTOR FOR HEAVY DUTY
as wooden pallets or hard mixed waste. It’s an ideal solution for example at DIY stores or logistic centres.
Intelligent SMART technology on the compactors contributes to more cost-efficient and safe operation. Device settings can be individually adjusted to best meet various waste management requirements. The compactors monitor their usage and adapt to anomalies in order to protect both the operator and the components.
CombiMax HD compactors feature Europress SMART connectivity readiness as standard, enabling integration to the Europress SMART Fleet Management system. The system provides insights on asset data and tools for streamlined fleet management.
Media
Additional information
CombiMax HD
Infeed aperture gross L x H (mm)
1,930 x 1,800
(Hopper 4, platform 1200 mm)
Infeed aperture net L x H (mm)
850 x 1300
Infeed height (mm) front / side
480 / 1300
Compaction force (t)
35 / 40*
Cycle time (s)
66 / 35*
Capacity (m³ /h)
78 / 147*
Noise level (dBa)
<70
Motor (kW)
5.5 / 7.5*
Power supply
400 V, 50 Hz, 3×C16 A
400 V, 50 Hz, 3×C32 A*
Blue color RAL 5017
Standard filling hopper
Lift hooks front / rear
Intelligent SMART technology
Europress SMART connectivity readiness
Custom RAL color
Guide rails
Additional controls e.g. emergency stops
Rollers front / rear (roll-off)
Custom filling hopper
Drainage system
2-phase discharge door opening mechanism
Long handle discharge door opening mechanism
Top hinged discharge door
Ozone generator / cooler device (odor control)
Bin lift (integrated / stationary)
Lid opening system (hydraulic / electronic)
Code start system
Auto start system
7.5 kW power unit
Water proof set up
Low feed set up
CombiMax HD 10 m³
Length 5,180 mm
Width 2,500 mm
Height 2,730 mm
Weight 3,840 kg
CombiMax HD 14 m³
Length 5,900 mm
Width 2,500 mm
Height 2,730 mm
Weight 4,050 kg
CombiMax HD 17 m³
Length 6,500 mm
Width 2,500 mm
Height 2,730 mm
Weight 4,220 kg
CombiMax HD 20 m³
Length 6,990 mm
Width 2,500 mm
Height 2,730 mm
Weight 4,360 kg
